Description :

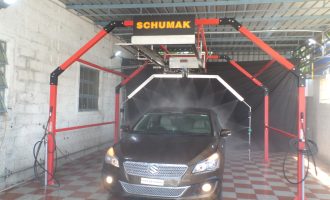

SCHUMAK Touchless Car Wash is designed to wash our cars economically and in lesser time. It’s made to raise the quality of car washing with its features like heavy duty stainless steel 304 grade body, Automatic high pressure uniform water spray , Automatic car length sensing , Automatic indigenous foam spray and Automatic high pressure spray on Body and under the car. This is a sturdy & effective machine which achieves significant savings for the customer when compared to other washing systems like brush car wash and manual car wash system.
Applications :
- Top body wash and underbody wash for cars and SUVS.
- Better wash quality.
- Since the car length is sensed automatically ,water consumption is less.
- Washing done by this machine reduces Time, Man Power and Cost.
- Increased Productivity (3.5 minute operation time)
- Digital counter counts the number of cars washed per day.
Feature & Benefit's :
- Stainless Steel 304 grade body for long life and to prevent rusting.
- Ultrasonic sensors are provided to sense the car length automatically.
- Control panel has automatic as well as manual mode.
- Increased Productivity (3.5 minute operation time)
- Reduced water consumption (125 liters per car)
- Reduced labour costs.
- Top body wash and underbody wash for cars and SUVS.
- Digital counter counts the number of cars washed per day.
Specifications :
| Machine Type | Overhead carriage Dual swing arm type |
| Required space (LxWxH) | 6700 x 4250 x 3700 mm |
| Overall dimension (LxWxH) | 5500 x 3950 x 3080 mm |
| Maximum washable dimension of car (LxWxH) | 4750 x 1900 x 1900 mm |
| Operating system (water) pressure, bar | 24 Bar |
| Water consumption per car, litres | 125 Litres |
| Cycle time per car, min (Excluding wheel arch washing & drying) | 3.5 min |
| Input supply | 3 Ph, 415V, 50Hz |
| Total connected load, kw | 9 hp |
| Power consumption per car, kWh | 0.6 Units |
